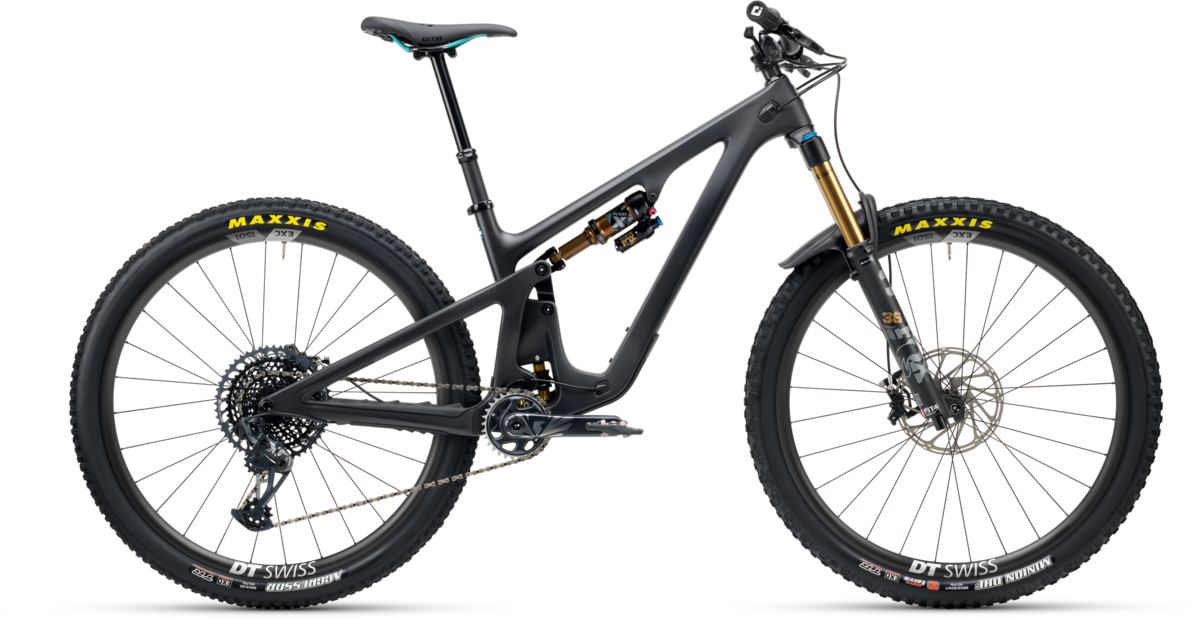

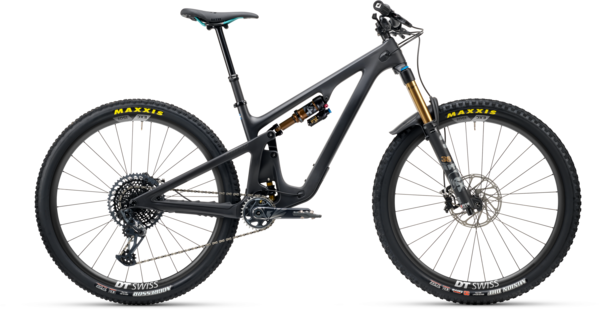

Yeti Cycles SB140 T-Series T2 X01 EXC

Yeti Cycles SB140 T-Series T2 X01 EXC
  • Color: Black/Grey Decal
  • Color: Emerald
  • Color: Turquoise
$8,400.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
Sorry, this item is currently not available. Please call us to see if this items is available for special order. (703) 689-2671. Thank you.

Details

Meet the bike in between nothing. Leaving no rider wanting. Master of the climb, the bomb, the rail, and the air. The utterly unequivocal. The rule crusher. The trend buster. No rig can rule all, but this one can absolutely rule. The mountain bike.

Sizes:
FRAME SIZESMALLMEDIUMLARGEX-LARGEXX-LARGE
SEAT TUBE LENGTH (mm) 365 400 440 470 485
EFFECTIVE TOPTUBE LENGTH (mm) 571 602 623 650 670
HEADTUBE ANGLE 65.4° 65.4° 65.4° 65.4° 65.4°
EFF. SEAT TUBE ANGLE 77.5° 77.5° 77.5° 77.4° 77.4°
ACTUAL SEAT TUBE ANGLE 72.2° 72.6° 72.8° 73.2° 73.7°
CHAINSTAY LENGTH (mm) 436 438 440 442 444
WHEELBASE (mm) 1184 1217 1242 1273 1300
ESTIMATED BB HEIGHT (mm) 339 339 339 339 339
STANDOVER (mm) 722 729 733 735 740
HEADTUBE LENGTH (mm) 92 95 100 112 134
FORK AXLE TO CROWN (mm) 565 565 565 565 565
FORK OFFSET (mm) 44 44 44 44 44
STACK (mm) 614 617 621 631 651
REACH (mm) 435 465 485 510 525
FRONT CENTER (mm) 748 779 802 831 856
VERTICAL FORK TRAVEL (mm) 136 136 136 136 136
Sizes:
FRAME SIZERIDER HEIGHT (cm)RIDER HEIGHT (in)
SMALL 155 cm - 170 cm 5’1” - 5’7”
MEDIUM 165 cm - 180 cm 5’5” - 5’11”
LARGE 178 cm - 191 cm 5’10” - 6’3”
X-LARGE 185 cm - 201 cm 6’1” - 6’7”
XX-LARGE 195 cm - 210 cm 6'5" - 6'11"

Specs

Frame TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Fork FOX FACTORY 36 GRIP X2/160MM
Rear Shock FOX FACTORY FLOAT X
Wheels DT Swiss EXC 1501 Carbon
Tires Front: MAXXIS MINION DHF 2.5 EXO
Rear: MAXXIS MINION DHR II 2.4 EXO
Bottom Bracket SRAM DUB BSA 73
Crankset SRAM X1 EAGLE CARBON 30T 170MM
Shifters SRAM X01 EAGLE
Rear Derailleur SRAM X01 EAGLE
Cassette/Freewheel SRAM X01 EAGLE 1295 10-52
Chain SRAM GX EAGLE
Brakes SRAM CODE RSC
Rotors SRAM CENTERLINE 200/SRAM CENTERLINE 180
Handlebars YETI CARBON 35X780MM
Tape/Grips ODI ELITE PRO
Stem BURGTEC ENDURO MK3 35X50MM
Headset CANE CREEK 40 INTEGRATED
Seatpost FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM
Saddle SILVERADO CUSTOM
Pedals Sold Separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black/Grey Decal / Small / 29-inch 786044584255 B25149TSMRGDFXT0265W0
Black/Grey Decal / Medium / 29-inch 786044583975 B25149TMDRGDFXT0265W0
Black/Grey Decal / Large / 29-inch 786044583692 B25149TLGRGDFXT0265W0
Black/Grey Decal / X-Large / 29-inch 786044584538 B25149TXLRGDFXT0265W0
Black/Grey Decal / XX-Large / 29-inch 786044584811 B25149TXXRGDFXT0265W0
Emerald / Small / 29-inch 786044585252 B25149TSMPEMFXT0265W0
Emerald / Medium / 29-inch 786044585238 B25149TMDPEMFXT0265W0
Emerald / Large / 29-inch 786044585214 B25149TLGPEMFXT0265W0
Emerald / X-Large / 29-inch 786044585276 B25149TXLPEMFXT0265W0
Turquoise / Small / 29-inch 786044584156 B25149TSMPTUFXT0265W0
Turquoise / Medium / 29-inch 786044583876 B25149TMDPTUFXT0265W0
Turquoise / Large / 29-inch 786044583593 B25149TLGPTUFXT0265W0
Turquoise / X-Large / 29-inch 786044584439 B25149TXLPTUFXT0265W0
Turquoise / XX-Large / 29-inch 786044584712 B25149TXXPTUFXT0265W0
