Yeti Cycles ARC T-SERIES T3 X0 T-TYPE 24

Yeti Cycles ARC T-SERIES T3 X0 T-TYPE 24
  • Color: Cobalt
  • Color: Rhino
  • Color: Turquoise
$6,900.00
Color: Cobalt
Size: Select size
Please select options Unavailable
Sorry, this item is currently not available. Please call us to see if this items is available for special order. (703) 689-2671. Thank you.

Details

The ARC is back. Conjuring up all the nostalgia, hoots, and hollers from yesteryear. It's your instant-feedback steed for any trail. Show it your singletrack, pump track, and your bikepack route too. It's got history to live up to and new history to make. And it's already impatient.

FEATURES:

SECURED FOR SPEED.
While the ARC has roots back to the beginning of mountain biking, this frame is anything but a nostalgic blast from the past. If you run a chain guide, the ARC has integrated ISCG 05 tabs.

SUMMIT PEAKS.
MAKE SHAPES.
A modern approach to hardtail geometry, without losing traction in the rear: riders have plenty of room to maneuver and respond to trail feedback without being too stretched out.

Far beyond a juiced-up thorough-bred XC race bike, the ARC is built around a 130mm fork for a massively capable trail bike.

DOWN COUNTRY, DONE DIFFERENT.
Qualifying personal achievements with the phrase "for a hardtail" simply isn't necessary. The ARC absolutely rips when held wide open.

THE SOUNDS OF SILENCE.
Internally routed cable tubes with secure closures at entry and exit points make rattles a thing of the past. And an all-new chain slap protector virtually eliminates that chain-on-rubber sound, maintaining the serenity of the adventure.

FEEL
Spry, stiff, light, fast, fun as hell.

DUAL SIDED DOWNTUBE MOUNTS.
For going deeper. Riding longer. Carrying that thing you wish you brought on your last trip.

FULL-STROKE DROPPERS ENCOURAGED.
If a 200mm drop is your thing, you'll still have room to spare.

PUT THE POWER DOWN.
The downtube, seat tube, and chainstays flow into each other for a stiff and direct feel.

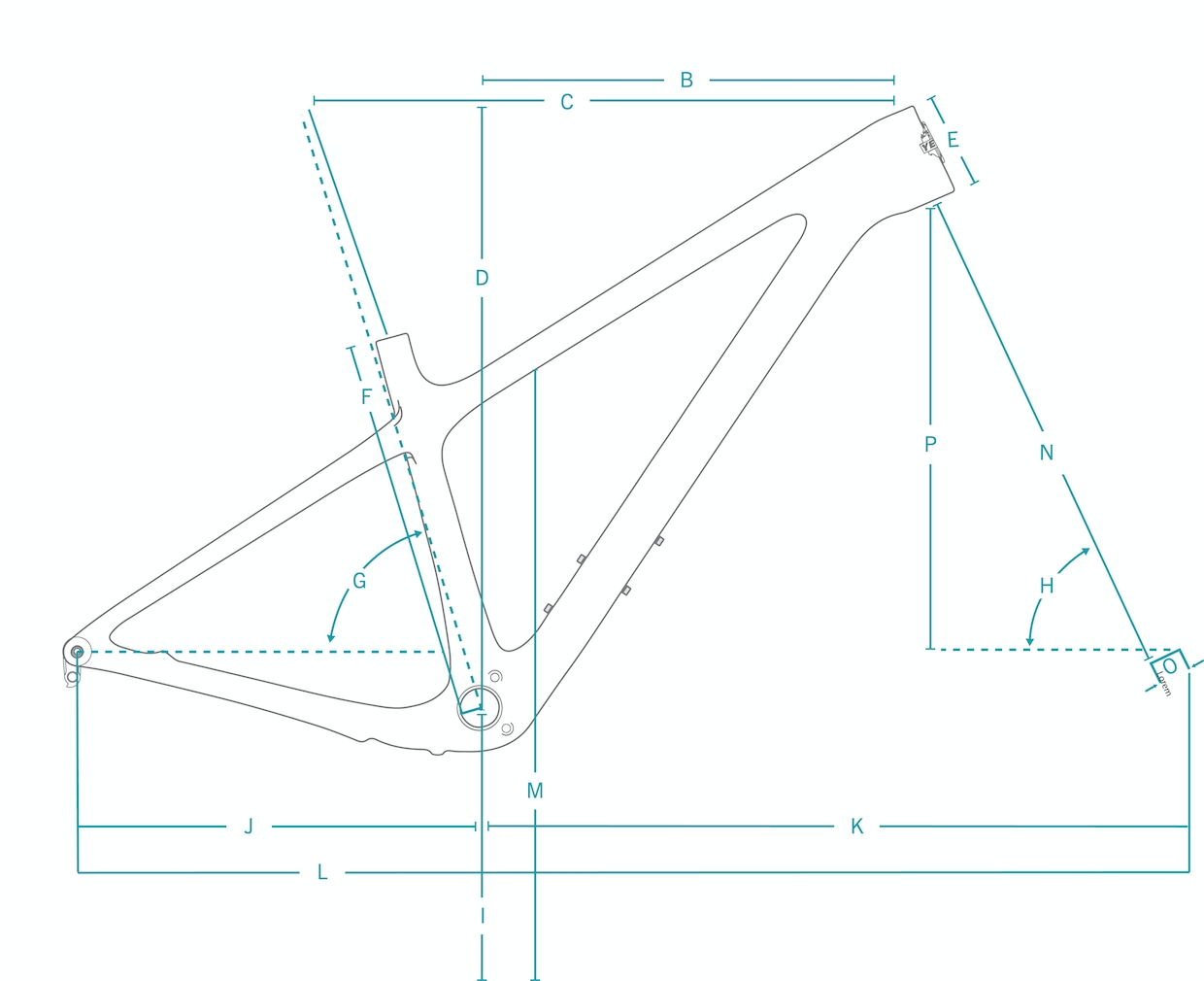

Geometry

Sizes:
SmallMediumLargeX-Large
A WHEEL SIZE 29 29 29 29
B REACH 16.5 17.5 18.3 19.3
C EFFECTIVE TOP TUBE LENGTH 22.7 23.8 24.6 25.7
D STACK 24.9 25.2 25.4 25.8
E HEADTUBE LENGTH 3.7 4.1 4.3 4.7
F SEAT TUBE LENGTH 15 16.1 17.7 19.5
G EFF. SEAT TUBE ANGLE 76 76 76 76
H HEADTUBE ANGLE 67 67 67 67
I ESTIMATED BB HEIGHT 12.2 12.2 12.2 12.2
J CHAINSTAY LENGTH 17 17 17 17
K FRONT CENTER 28 29.1 30 31.1
L WHEELBASE 45 46.1 47 48.2
M STANDOVER 28.5 28.4 28.3 28.3
N AXLE TO CROWN 21.4 21.4 21.4 21.4
O OFFSET 1.7 1.7 1.7 1.7
P VERTICAL FORK TRAVEL 4.7 4.7 4.7 4.7
Sizes:
Small5'1" - 5'7"
Medium 5'5" - 5'11"
Large 5'10" - 6'3"
X-Large 6'1" - 6'7"

Specs

Frame TURQ series carbon fiber frame, Pressfit BB92, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, Universal derailleur hanger (UDH), and axle.
Fork FOX FACTORY 34 FIT4/130MM
Wheels RACEFACE ARC OFFSET 30MM/DT SWISS 350
Tires Front: MAXXIS MINION DHF 2.6 EXO
Rear: MAXXIS REKON 2.6 EXO
Bottom Bracket SRAM DUB BB92
Crankset SRAM X0 EAGLE TRANSMISSION 32T 170MM
Shifters SRAM AXS POD CONTROLLER
Rear Derailleur SRAM X0 EAGLE AXS TRANSMISSION
Cassette/Freewheel SRAM X0 EAGLE TRANSMISSION 10-52
Chain SRAM X0 EAGLE TRANSMISSION FLATTOP
Brakes SRAM LEVEL TLM
Rotors SRAM CENTERLINE 180/SRAM CENTERLINE 180
Handlebars YETI CARBON 35X760MM
Tape/Grips ODI ELITE PRO
Stem BURGTEC ENDURO MK3 35X50MM
Headset CANE CREEK 40 INTEGRATED
Seatpost FOX TRANSFER 31.6MM / SM: 175MM, MD-XL: 200MM
Saddle SILVERADO CUSTOM
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option MPN
Cobalt / Small B24ARCTSMPCBFATE34300
Cobalt / Medium B24ARCTMDPCBFATE34300
Cobalt / Large B24ARCTLGPCBFATE34300
Cobalt / X-Large B24ARCTXLPCBFATE34300
Rhino / Small B24ARCTSMPRIFATE34300
Rhino / Medium B24ARCTMDPRIFATE34300
Rhino / Large B24ARCTLGPRIFATE34300
Rhino / X-Large B24ARCTXLPRIFATE34300
Turquoise / Small B24ARCTSMPTUFATE34300
Turquoise / Medium B24ARCTMDPTUFATE34300
Turquoise / Large B24ARCTLGPTUFATE34300
Turquoise / X-Large B24ARCTXLPTUFATE34300
